Configuration of Rechargeable Battery Pack (Cylindrical)

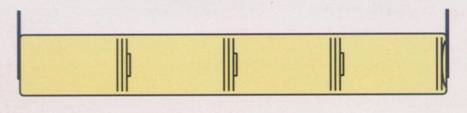

Stick form with solder tag

Stick form with wire

Stick form with connector

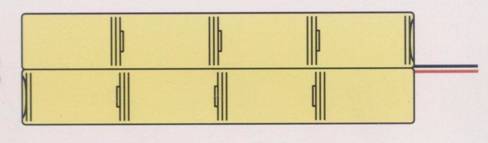

Double stick form with wire

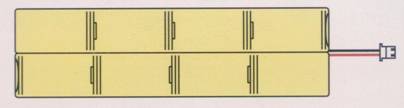

Double stick form with connector

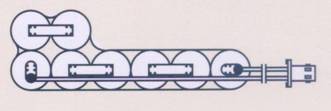

Row form with connector

Row form with solder tag

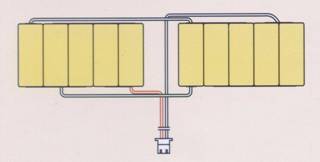

OEM pack with wire or with connector

OEM pack with wire or with connector

OEM pack with wire or with connector



Configurations System
Designation system for battery packs

System / size /capacity / nos. of cell / configuration code / tag type code / tag direction code

Example: NCAA7004H1P

Explantion: NC = nickel cadmium (i.e. NH = nickel Metal hydride)



AA = AA size

700 = 700 mAh

4 = 4 pcs. of cells

H = configuration code H

1 = tag type code 1

P = tag direction code P





Configuration Code

Code B
Cells in a row

Code G
Cells stacked in 2 vertical columns of unequal number of cells

Code H
Cells stacked in multiple columns and layers

Code L
Cells stacked in a vertical column

Code O
Cells arranged in one cell horizontal and one or more cells vertical

Code V
(left: 3V, right: 5V)
Cells arranged in horizontal triangle or zig-zag rows (in one or more layers

Code X
Cells arranged in a borizontal rectangle



Tag Type Code

Code 1
Strip solder

Code 2
PCB solder tag

Code 3
Double PCB pin at positive terminal and single PCB pin at negative terminal

Code 4
Solder wire tag

Code 5
Short strip tag

Code 6
Lead wire



Tag Direction Code

Code H
Pointing at the same direction

Code L
Pointing at upright angle

Code P
Pointing at different direction
