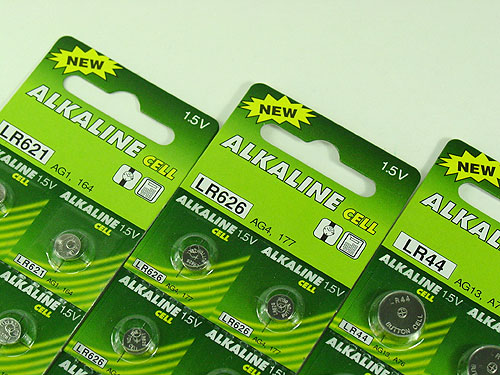

Alkaline Manganese Button Cells - AG Series

Rondason alkaline manganese button cells can provide an economical power source for devices that do not require flat-voltage discharge characteristics. They are widely used in all kinds of small electronic toys, micro-electronic devices, clocks and calculators, etc. by their advantage of long service duration and superior leakage resistance.

Major Features

  • Safety and superior resistance to leakage
  • Long service life and long shelf life
  • Excellent storage capability
  • Consistent performance
  • Economic

Major Applications

  • Calculators
  • Cameras
  • Electronic toys
  • Remote control devices
  • Melody cards




Model

Dimensions (mm)

Nominal Capacity (Mah)

Continuous Current (mA)

Approx. Weight (gm)

Cross Reference
O
H
IEC
ANSI & NEDA
Others

AG series: Nominal voltage (1.5V)

AG0

5.8

2.15

10

0.02

0.21

LR521

N/A

LR63, 379, SR521

AG1

6.8

2.15

13

0.02

0.28

LR60

N/A

L621, 364, V1GA

AG2

7.9

2.60

25

0.05

0.43

LR59

N/A

LR726, 196, 397, V2GA

AG3

7.9

3.60

28

0.07

0.60

LR41

N/A

L736, 192, 392, V3GA

AG4

6.8

2.60

18

0.03

0.36

LR66

N/A

L626, 377, V4GA

AG5

7.9

5.4

52

0.10

0.86

LR48

N/A

L754, 193, 393, V5GA

AG6

9.5

2.15

30

0.05

0.57

LR69

N/A

L921, 371, V6GA

AG7

9.5

2.60

34

0.07

0.65

LR57

N/A

L926, 395, V7GA

AG8

11.6

2.15

42

0.07

0.87

LR55

1169A

L1121, LR1120, 191, V8GA, 391

AG9

9.5

3.60

50

0.10

0.80

LR45

N/A

L936, 394, V9GA

AG10

11.6

3.10

68

0.10

1.10

LR54

1168A

L1131, LR1130, 189, 389, 4274, V10GA, RW89

AG11

7.9

2.15

21

0.03

0.38

LR58

N/A

L721, 262, V11GA

AG12

11.6

4.20

108

0.15

1.55

LR43

1167A

L1142, 186, 4278, 386, V12GA, RW84

AG13

11.6

5.4

138

0.22

1.90

LR44

1166A

L1154, A76, 357, 4276, V13GA, RW82

AGH series: Nominal voltage: 23A & 27A (12V), 4LR44 (6V)

23A

10.0

28.5

35

0.10

7.3

23A

1811A

L1028, A23, GL12, VA23G

27A

8.0

28.8

18

0.05

4.5

27A

N/A

L828, A27, 246, VA27GA

4LR44

13.0

25.2

165

0.22

9.57

4LR44

1414A

L1325, A27, 476A, A544, PX28A, V4034PX
