LITHIUEM BUTTON CELL - CR Series


Major Features:

  • Safety and strong leakage resistance
  • Open circuit voltage 3.0V, high operating voltage 2.7-3.0V with loaded resistance
  • Environmental friendly and cadmium or mercury free
  • High energy density up to 270WH/kg (510WH/dm3)
  • Long storage life, less than 2% of self-discharge rate per year, possible stored for 10 years at room temperature
  • Wide operating temperature, ranging from -40℃ to +70℃
  • Excellent pulse and continuous discharge characteristics

Major Applications:

  • Audio equipment, hearing aids
  • Transceivers & radios, calculators, toys
  • Cameras, computer memory backup
  • Electronic communication device, watches and clocks
  • Micro cassette recorders, small elecronic instruments
  • Medical equipment, military electronics
  • Industrial monitors and controls

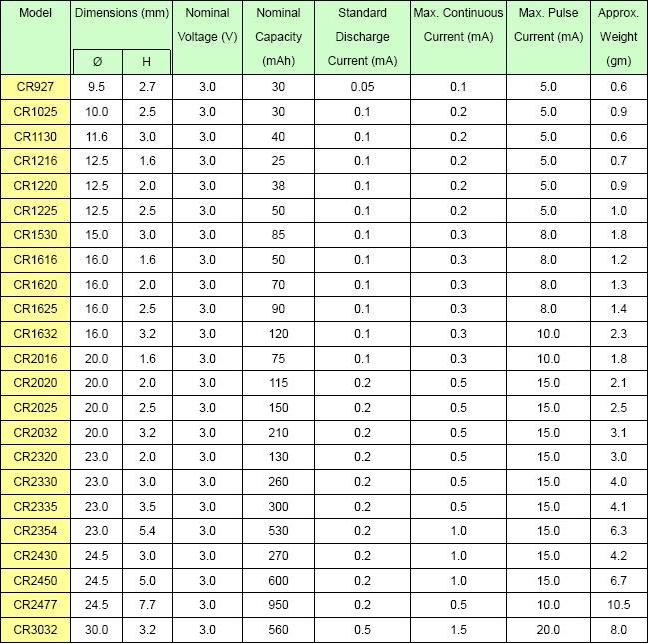

Product Chart




Pin Configurations
Pin A
Pin B
Pin C
Pin D
Pin E
Pin F
Pin G
Pin H

Tag Code
Tag A

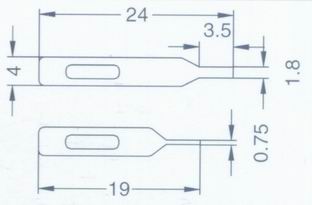

Tag B

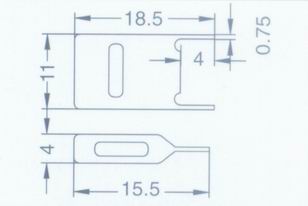

Tag C

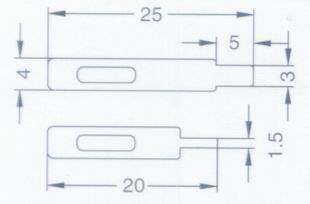

Tag D

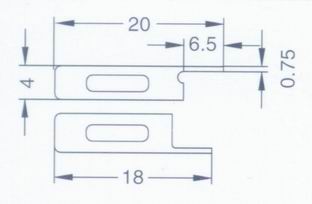

Tag E
Tag F
Tag G

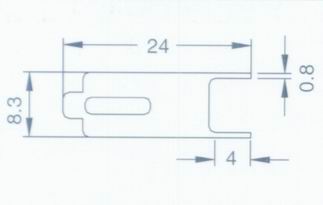

Tag H
Tag I
OEM welcome

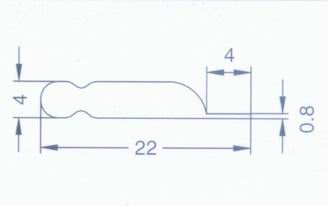

Tag J
Tag K
